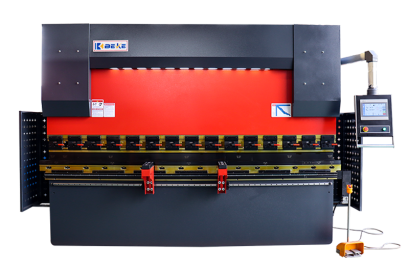

DELEM DA53T เครื่องดัดไฮดรอลิก CNC แบบ 4+1 แกน (X, Y1, Y2, R+V)

1. Main Features:
1. Brand-new industry design combined with modern aesthetic concept, high-quality production technology with simple appearance.

2. Latest high-frequency responding hydraulic control technology, faster, more efficient, and higher accuracy.

3. Heat treatment of the machine frame, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of the MB8 hydraulic press brake series Press Brakes.

4. Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation.

5. MB8 standard 2axis backgauge system, as for complicated shape work piece, 4 or 5 axis backgauge system and corresponding dies are available for your option.

6. Press Brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to NC system by bilateral gratings, then NC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2 ) running on the same frequency, maintaining the parallel state of the worktable.

7. According to process state of sheet metal, CNC Hydraulic guillotine shear system can automatically control the table deflection compensation value resulting in uniform length and angle of all workpieces.

8. The use of hydraulic press brake deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders in the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative position relations with slider keep unchanged. Compensation values are subject to plate thickness and properties of the material to be cut.

2. Main Configurations:
1. hydraulic press brake adopts Holland DELEM DA53T

2. Grating ruler controls depth of Y1 and Y2 axis（y1/y2-axis 0.01mm）

3. Servo motor servo drives control X axis（X, R-axis 0.01mm), stop finger can be easily moved along the cylindrical guide.

4. Keep the accuracy between HIWIN ball screw and linear guide rail within 0.01mm

5. Front supporter can be adjusted along the linear guide rail in the worktable direction

6. Germany Rexroth fully closed-loop electro-hydraulic servo synchronously controls the system

7. Germany EMB oil tube connectors

8. Germany Siemens main motor

9. France Schneider Electrics

10. Hydraulic and electrical overload protection

11. Upper are mechanical fast pinching dies. Lower are double-V easy changeable dies

3. Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

· Front finger protection device ( safety light curtain )

· South Korea KACON pedal switch ( 4 security grade )

· Back metal safeguard, CE standard

· Safety relay monitors completed with pedal switch, safety guard

· hydraulic press brake safety standard（2006／42／EC）

4. Holland Delem DA53T Controller:
· 8″ broadband color display

· Max 4-axes control (Y1, Y2, two additional axes )

· 266MHZ processor, memory capacity of 64M

· Die library, 30 upper dies, 30 lower dies

· USB memory interface, RS232 interface

· Real-time Windows operating platform to ensure the stability of the operation, support instant shutdown

· One-page parameters for rapid editing, navigation shortcut keys

· Automatically calculate a deflection compensation value

· Micro switch panel, data editing

· Automatically calculate the bending pressure and die safety region

· Online operation analysis tool, Diagnostic Dashboard, angle calibration database

The Hydraulic CNC Press Brake, a top-of-the-line industrial machinery that promises to revolutionize the metalworking industry. This state-of-the-art product boasts unparalleled efficiency, accuracy, and reliability, making it the go-to choice for manufacturers looking to streamline their metal bending and forming processes.

The Hydraulic CNC Press Brake is equipped with a hydraulic system that provides superior force and control, allowing for precise and consistent bending of various materials such as steel, aluminum, and copper. With its advanced CNC technology, operators can easily program and execute complex bending sequences with the touch of a button, reducing the risk of errors and increasing productivity.

This product is designed with an ergonomic and user-friendly interface, making it easy for operators to navigate and adjust the various settings to suit their specific needs. Its sturdy construction and durable components ensure that it can withstand the rigors of heavy-duty use and deliver consistent performance over time.

One of the key advantages of the Hydraulic CNC Press Brake is its versatility. It can be used for a wide range of metalworking applications, including sheet metal bending, plate bending, and tube bending. Its modular design allows for easy customization and expansion, making it a versatile and adaptable solution for businesses of all sizes.

The Hydraulic CNC Press Brake also offers several safety features that ensure the well-being of operators and workers. Its advanced safety systems include a light curtain that automatically stops the machine when any foreign object or obstruction is detected, as well as an emergency stop button that can be activated at any time to immediately halt the machine’s operation.

In addition, the Hydraulic CNC Press Brake is designed to reduce energy consumption and minimize environmental impact. Its hydraulic system is engineered for high efficiency, reducing energy consumption by up to 70% compared to traditional hydraulic systems. Its low noise level and minimal emissions make it an environmentally friendly choice for manufacturers looking to reduce their carbon footprint.

Another key advantage of the Hydraulic CNC Press Brake is its low maintenance requirements. Its durable construction and high-quality components ensure that it can operate reliably for extended periods with minimal downtime. Routine maintenance tasks such as oil changes and filter replacements can be easily performed by trained personnel, reducing the need for costly repairs and service calls.

Overall, the Hydraulic CNC Press Brake is a cutting-edge industrial machinery that delivers unparalleled precision, versatility, and reliability. Its advanced features, user-friendly interface, and safety systems make it an ideal choice for businesses looking to optimize their metalworking processes and stay ahead of the competition. Whether you’re a small workshop or a large manufacturing facility, the Hydraulic CNC Press Brake is the ultimate solution for all your metal bending and forming needs.
